Native VLAN Introduction and Configuration Example
Table of Contents
- What is a native VLAN? ‹
- Native VLAN example lab and configuration ‹
- Packet capture of tagged/untagged protocols ‹
- How to tag the native VLAN? ‹
- Download section ‹
What is a native VLAN?
An Ethernet frame can carry a VLAN tag, which includes the VLAN ID assigned to that frame. A VLAN tag is 4-bytes long and is also called an 802.1Q tag. With this tag, a switch can identify different VLANs for traffic arriving on a trunk link. A trunk link carries traffic for multiple VLANs.
A native VLAN can be arbitrarily chosen by the network administrator, and it is configured on a trunk interface. Traffic that is sent in the native VLAN does not have a VLAN tag assigned, it is untagged. And any traffic that arrives untagged is assigned by the switch to the native VLAN.
Four facts about the native VLAN:
- Only one native VLAN can be assigned to a trunk link.
- By default, a switch assigns VLAN 1 as the native VLAN.
- Some protocols always use the native VLAN, for example DTP.
- The native VLAN needs to match on both ends of a trunk link for optimal network operation.
If the native VLAN does not match on both ends of a link, the following message is logged on a switch. The message informs about the native VLAN 10 used on the local interface GigabitEthernet0/0, meanwhile the connected neighboring SW2 interface uses native VLAN 20.
SW1#show log | beg Log Buffer
Log Buffer (8192 bytes):
%SPANTREE-2-RECV_PVID_ERR: Received BPDU with inconsistent peer vlan id 20 on GigabitEthernet0/0 VLAN10.
%SPANTREE-2-BLOCK_PVID_PEER: Blocking GigabitEthernet0/0 on VLAN0020. Inconsistent peer vlan.
%SPANTREE-2-BLOCK_PVID_LOCAL: Blocking GigabitEthernet0/0 on VLAN0010. Inconsistent local vlan.
%CDP-4-NATIVE_VLAN_MISMATCH: Native VLAN mismatch discovered on GigabitEthernet0/0 (10), with SW2 GigabitEthernet0/0 (20).
Native VLAN example lab and configuration
By default, the native VLAN is asssigned to VLAN 1. VLAN 1 is also the "default VLAN". The default VLAN cannot be changed or deleted.
SW2(config)#no vlan 1
%Default VLAN 1 may not be deleted.
For improved network security in this sample topology, the native VLAN is changed to VLAN 20. The native VLAN is configured per trunk (also on Port-Channel interfaces) and on both ends of a link, in order to avoid native VLAN mismatch. As a result, in trunks configured with VLAN 20 as the native VLAN, traffic is not assigned a VLAN tag - the traffic remains untagged in the native VLAN.
On the access layer switches SW8 and SW9 the trunk ports allow only traffic in VLAN 10. However, the native VLAN 20 still needs to be configured in order to avoid native VLAN mismatch between SW8/SW9 and SW4/SW5.
Configuration:
SW1
SW1#show run int Po10 | sec int interface Port-channel10 description ** Layer-2 EtherChannel to SW2 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk SW1#show run int Po20 | sec int interface Port-channel20 description ** Layer-2 EtherChannel to SW3 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk SW1#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to SW2 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto channel-group 10 mode on SW1#show run int Gi0/1 | sec int interface GigabitEthernet0/1 description ** to SW2 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto channel-group 10 mode on SW1#show run int Gi0/2 | sec int interface GigabitEthernet0/2 description ** to SW3 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto channel-group 20 mode on SW1#show run int Gi0/3 | sec int interface GigabitEthernet0/3 description ** to SW3 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto channel-group 20 mode on SW1#show run int vlan10 | sec int interface Vlan10 description ** SVI for VLAN 10 ** ip address 192.168.1.254 255.255.255.0 SW1#show run int vlan20 | sec int interface Vlan20 description ** SVI for VLAN 20 ** ip address 192.168.2.254 255.255.255.0 SW1#show run | sec ^spanning spanning-tree mode mst spanning-tree extend system-id spanning-tree pathcost method long spanning-tree mst configuration name EXAMPLE-MST revision 1 instance 1 vlan 10, 20 spanning-tree mst 0-1 priority 4096
SW2
SW2#show run int Po10 | sec int interface Port-channel10 description ** Layer-2 EtherChannel to SW1 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk SW2#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to SW4 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW2#show run int Gi0/1 | sec int interface GigabitEthernet0/1 description ** to SW5 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW2#show run int Gi0/2 | sec int interface GigabitEthernet0/2 description ** to SW6 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW2#show run int Gi0/3 | sec int interface GigabitEthernet0/3 description ** to SW7 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW2#show run int Gi1/0 | sec int interface GigabitEthernet1/0 description ** to SW1 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto channel-group 10 mode on SW2#show run int Gi1/1 | sec int interface GigabitEthernet1/1 description ** to SW1 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto channel-group 10 mode on SW2#show run | sec ^spanning spanning-tree mode mst spanning-tree extend system-id spanning-tree pathcost method long spanning-tree mst configuration name EXAMPLE-MST revision 1 instance 1 vlan 10, 20 spanning-tree mst 0-1 priority 8192
SW3
SW3#show run int Po20 | sec int interface Port-channel20 description ** Layer-2 EtherChannel to SW1 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk SW3#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to SW4 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW3#show run int Gi0/1 | sec int interface GigabitEthernet0/1 description ** to SW5 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW3#show run int Gi0/2 | sec int interface GigabitEthernet0/2 description ** to SW6 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW3#show run int Gi0/3 | sec int interface GigabitEthernet0/3 description ** to SW7 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW3#show run int Gi1/0 | sec int interface GigabitEthernet1/0 description ** to SW1 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto channel-group 20 mode on SW3#show run int Gi1/1 | sec int interface GigabitEthernet1/1 description ** to SW1 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto channel-group 20 mode on SW3#show run | sec ^spanning spanning-tree mode mst spanning-tree extend system-id spanning-tree pathcost method long spanning-tree mst configuration name EXAMPLE-MST revision 1 instance 1 vlan 10, 20 spanning-tree mst 0-1 priority 16384
SW4
SW4#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to SW8 ** switchport trunk allowed vlan 10 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW4#show run int Gi0/1 | sec int interface GigabitEthernet0/1 description ** to SW9 ** switchport trunk allowed vlan 10 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW4#show run int Gi0/2 | sec int interface GigabitEthernet0/2 description ** to SW2 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW4#show run int Gi0/3 | sec int interface GigabitEthernet0/3 description ** to SW3 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW4#show run | sec ^spanning spanning-tree mode mst spanning-tree extend system-id spanning-tree pathcost method long spanning-tree mst configuration name EXAMPLE-MST revision 1 instance 1 vlan 10, 20
SW6
SW6#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to SW10 ** switchport trunk allowed vlan 20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW6#show run int Gi0/1 | sec int interface GigabitEthernet0/1 description ** to SW2 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW6#show run int Gi0/2 | sec int interface GigabitEthernet0/2 description ** to SW3 ** switchport trunk allowed vlan 10,20 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto SW6#show run | sec ^spanning spanning-tree mode mst spanning-tree extend system-id spanning-tree pathcost method long spanning-tree mst configuration name EXAMPLE-MST revision 1 instance 1 vlan 10, 20
SW8
SW8#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to Host1 ** switchport access vlan 10 switchport mode access negotiation auto SW8#show run int Gi0/1 | sec int interface GigabitEthernet0/1 description ** to Host2 ** switchport access vlan 10 switchport mode access negotiation auto SW8#show run int Gi0/2 | sec int interface GigabitEthernet0/2 description ** to SW4 ** switchport trunk allowed vlan 10 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto spanning-tree mst 0-1 cost 100 SW8#show run int Gi0/3 | sec int interface GigabitEthernet0/3 description ** to SW5 ** switchport trunk allowed vlan 10 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk negotiation auto spanning-tree mst 0-1 cost 50 SW8#show run | sec ^spanning spanning-tree mode mst spanning-tree extend system-id spanning-tree pathcost method long spanning-tree mst configuration name EXAMPLE-MST revision 1 instance 1 vlan 10, 20
Host1
Host1#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to SW8 ** ip address 192.168.1.1 255.255.255.0 duplex auto speed auto media-type rj45 Host1#show run | sec ^ip route ip route 0.0.0.0 0.0.0.0 192.168.1.254
SW1#show int Po10 trunk Port Mode Encapsulation Status Native vlan Po10 on 802.1q trunking 20 Port Vlans allowed on trunk Po10 10,20 Port Vlans allowed and active in management domain Po10 10,20 Port Vlans in spanning tree forwarding state and not pruned Po10 10,20 SW1#show int Po10 switchport Name: Po10 Switchport: Enabled Administrative Mode: trunk Operational Mode: trunk Administrative Trunking Encapsulation: dot1q Operational Trunking Encapsulation: dot1q Negotiation of Trunking: On Access Mode VLAN: 1 (default) Trunking Native Mode VLAN: 20 (VLAN20) Administrative Native VLAN tagging: enabled Voice VLAN: none Administrative private-vlan host-association: none Administrative private-vlan mapping: none Administrative private-vlan trunk native VLAN: none Administrative private-vlan trunk Native VLAN tagging: enabled Administrative private-vlan trunk encapsulation: dot1q Administrative private-vlan trunk normal VLANs: none Administrative private-vlan trunk associations: none Administrative private-vlan trunk mappings: none Operational private-vlan: none Trunking VLANs Enabled: 10,20 Pruning VLANs Enabled: 2-1001 Protected: false Appliance trust: none SW1#show ip int brief Interface IP-Address OK? Method Status Protocol GigabitEthernet0/0 unassigned YES unset up up GigabitEthernet0/1 unassigned YES unset up up GigabitEthernet0/2 unassigned YES unset up up GigabitEthernet0/3 unassigned YES unset up up Port-channel10 unassigned YES unset up up Port-channel20 unassigned YES unset up up Vlan10 192.168.1.254 YES NVRAM up up Vlan20 192.168.2.254 YES NVRAM up up SW1#show spanning-tree MST0 Spanning tree enabled protocol mstp Root ID Priority 4096 Address 5254.001f.c7ba This bridge is the root Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Bridge ID Priority 4096 (priority 4096 sys-id-ext 0) Address 5254.001f.c7ba Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Interface Role Sts Cost Prio.Nbr Type ------------------- ---- --- --------- -------- -------------------------------- Po10 Desg FWD 10000 128.65 P2p Po20 Desg FWD 10000 128.66 P2p MST1 Spanning tree enabled protocol mstp Root ID Priority 4097 Address 5254.001f.c7ba This bridge is the root Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Bridge ID Priority 4097 (priority 4096 sys-id-ext 1) Address 5254.001f.c7ba Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Interface Role Sts Cost Prio.Nbr Type ------------------- ---- --- --------- -------- -------------------------------- Po10 Desg FWD 10000 128.65 P2p Po20 Desg FWD 10000 128.66 P2p
Packet capture of tagged/untagged protocols
When the native VLAN is changed, some protocols will follow this change and converge in the native VLAN. An example of this is the Spanning-Tree Protocol. Per-VLAN STP builds a tree topology for each VLAN, including the native VLAN 20. This is shown in the following packet capture, where PVST+ converges in VLAN 10 and also VLAN 20, but there is no VLAN tag added for BPDUs in VLAN 20, making frames 4 bytes shorter.
Another protocol, the Dynamic Trunking Protocol (DTP) always uses the native VLAN to exchange messages and negotiate a trunk link or access port. As a result, a DTP frame does not have a VLAN tag assigned.

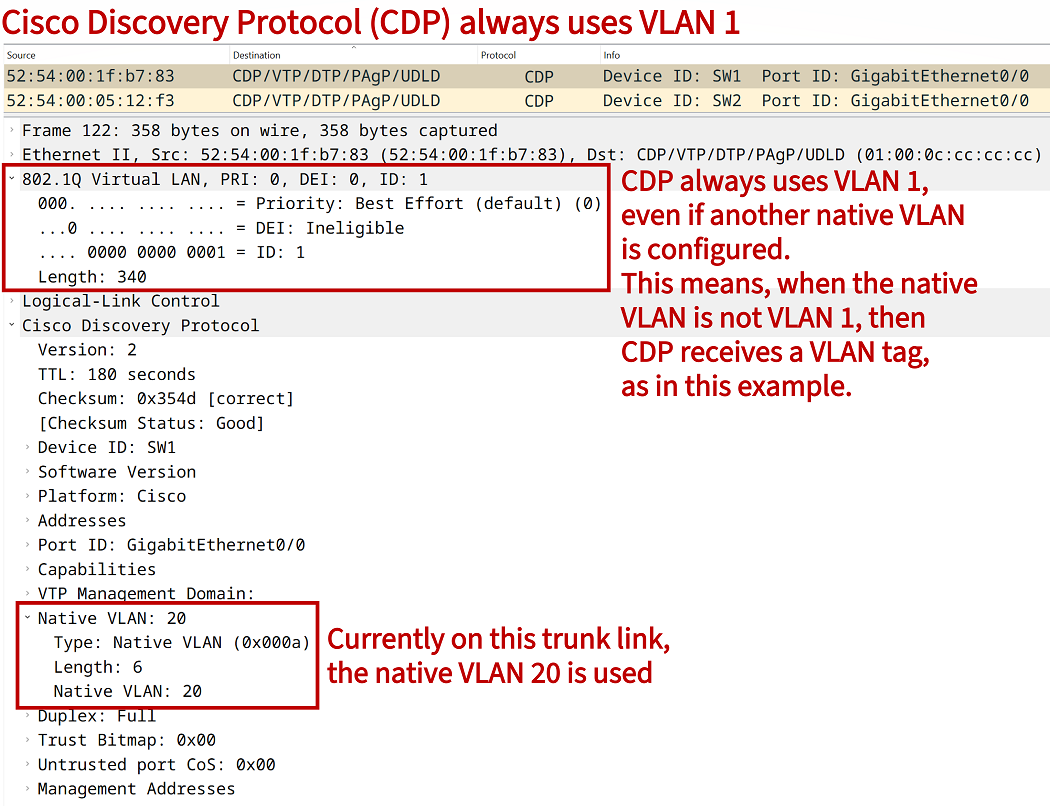

Meanwhile, some protocols do not necessarily use the native VLAN when exchanging protocol data units or frames. An example is provided in the following packet capture, the Cisco Discovery Protocol (CDP) continues to use the default VLAN 1 even if the network is configured with native VLAN 20. Note that by default VLAN 1 is the native VLAN.
How to tag the native VLAN?
By issuing the command vlan dot1q tag native in global configuration mode, a switch can be instructed to tag the native VLAN. Thus, even the native VLAN can be tagged. This practice is used to improve network security and avoid a VLAN hopping attack when double-tagged frames are forwarded in Q-in-Q.
